安全爆破片爆破值:352kg/cm2

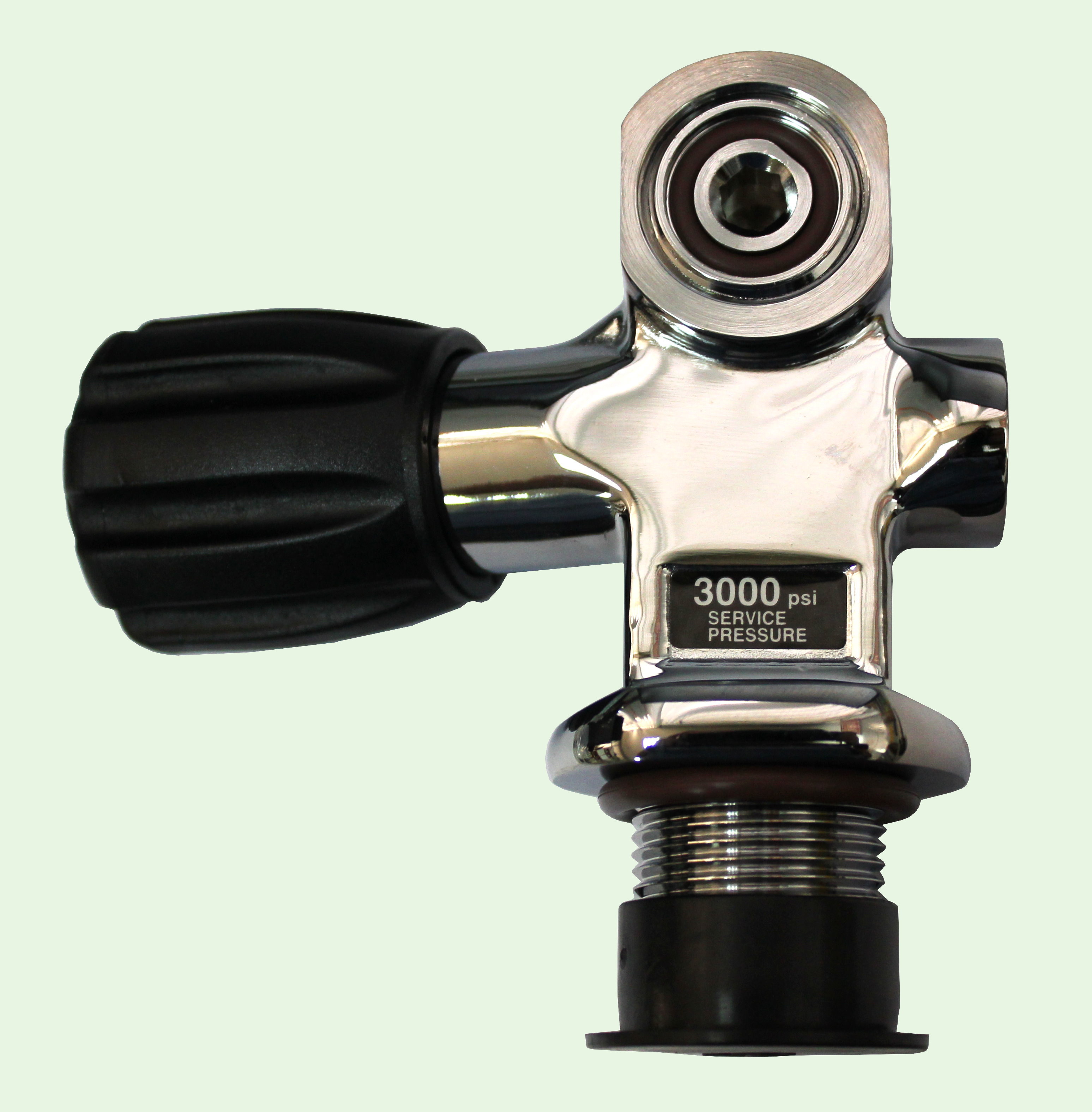

工作壓:3000 PSI |
|
件
號

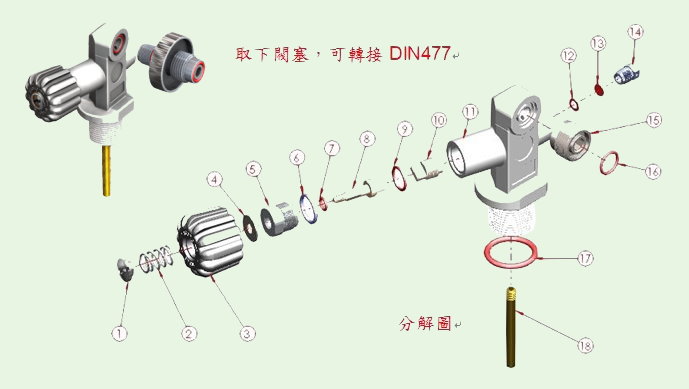

ITEM
NO. |
料 號
PART NO. |
品 名
PART NAME |
|
1 |
11083-7 |
盤型螺帽 |
FIXED NUT |
|
2 |
11083-9 |
軸心彈簧 |
SPRING,
SPINDLE |
|
3 |
11083-6 |
把手 |
HANDWHEEL |
|
4 |
11083-10 |
墊圈 |
PACKING |
|
5 |
11073-4 |
填塞螺帽 |
BONNET NUT |
|
6 |
11083-5 |
墊圈 |
PACKING |
|
7 |
11083-17 |
O型環 |
O-RING |
|
8 |
11083-8 |
轉軸 |
SPINDLE |
|
9 |
11073-16 |
墊圈 |
PACKING |
|
10 |
11083-2A |
活塞桿組 |
PLUG & SEAL |
|
11 |
11073-M |
閥體 |
VALVE BODY |
|
12 |
11083-12B |
紅銅杯 |
CAP |
|
13 |
11083A-12C |
破裂片 |
RUPTURE DISC |
|
14 |
11083-12 |
安全螺絲 |
SAFETY PLUG |
|
15 |
11083-24 |
出氣螺絲 |
ADAPTOR |
|
16 |
11083-23 |
O型環 |
O-RING |
|
17 |
11083-14 |
O型環 |
O-RING |
|
18 |
11083-15 |
液管 |
TUBE |
|
- |
11083A-11 |
貼紙 |
STICKER |
|
- |
11083-18A |
保護套 |
COVER |
|
